Gateways
– from [SCG 1 2101] –

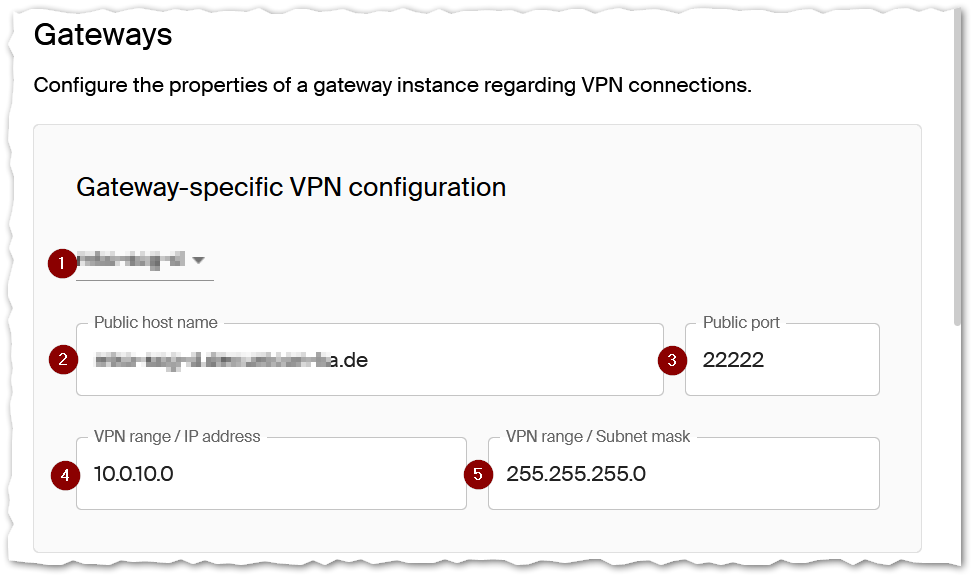

Configure each new instance after installation in the Configuration view under Gateways.
VPN connections of a gateway instance
Each new SCG instance must be reachable for the target devices via VPN.
- Select your new instance.
- Variants for multiple gateway instances: Same host name and different ports or different host names and same port.
- VPN port
- Use a free port. The system does not check for existing assignments.
- Open the port in your firewall.
-
Range of IP addresses that will be assigned by the Scout Cloud Gateway for secure communication with eLux
Example: 10.0.10.0
- Subnet mask for the IP address range
Example: 255.255.255.0
Web server configuration
During installation (1-from SCG 1 2209 also for the Debian installation) the system automatically creates a self-signed certificate that secures the connection between the web server and the [WebAdmin interface] of the SCG instance (2-from SCG 1 2101). This allows the administrator to perform further configuration using the [WebAdmin interface] - and an HTTPS connection - immediately after installing an SCG instance. The self-signed certificate is valid for 365 days and is renewed automatically.
If you have an individual certificate, replace the self-signed certificate. To do so, click Select file (3-only for VMs (.ova installation)).
For multiple gateway instances, you can either use a separate certificate for each instance and assign it in the respective WebAdmin interface. Alternatively, use a wildcard certificate for all instances, if this is applicable within your structure.
